- Ready for AMD 3rd Gen Ryzen Threadripper Processors: Maximize connectivity and speed with up to five M.2 drives, USB3.2 Gen2x2 and AMD StoreMI

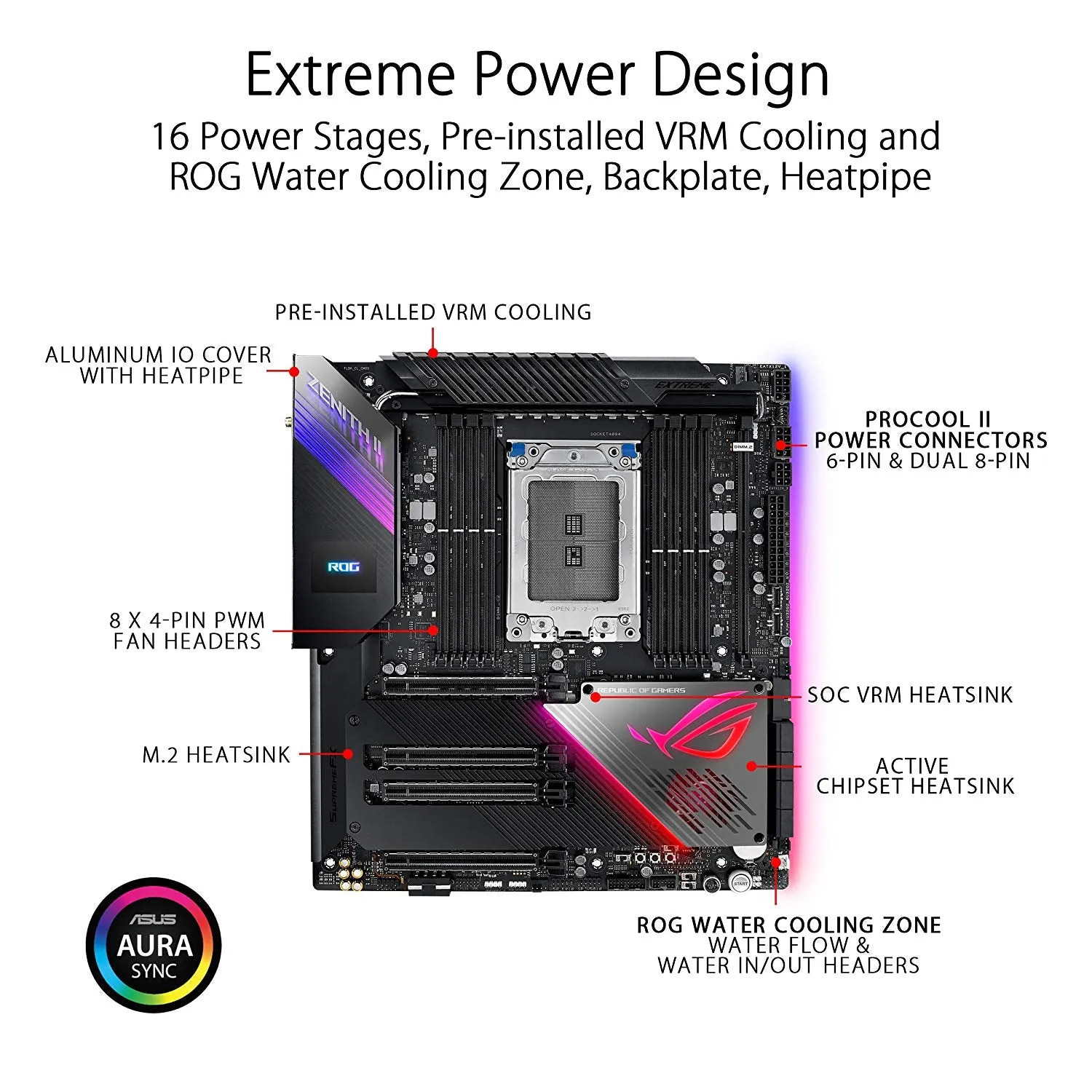

- Robust power delivery: Optimized power solution with 16 Infineon TDA21472 power stages, ProCool II power connectors, microfine alloy chokes and 10K capacitors
- Comprehensive thermal design: Active-cooling VRM heatsink, PCIe-zone M.2 aluminum heatsink, backplate, Fan Extension Card II and water-cooling zone
- High-performance networking: Onboard Aquantia 10 Gbps Ethernet, Wi-Fi 6 (802.11ax) with MU-MIMO support, and GameFirst V technology

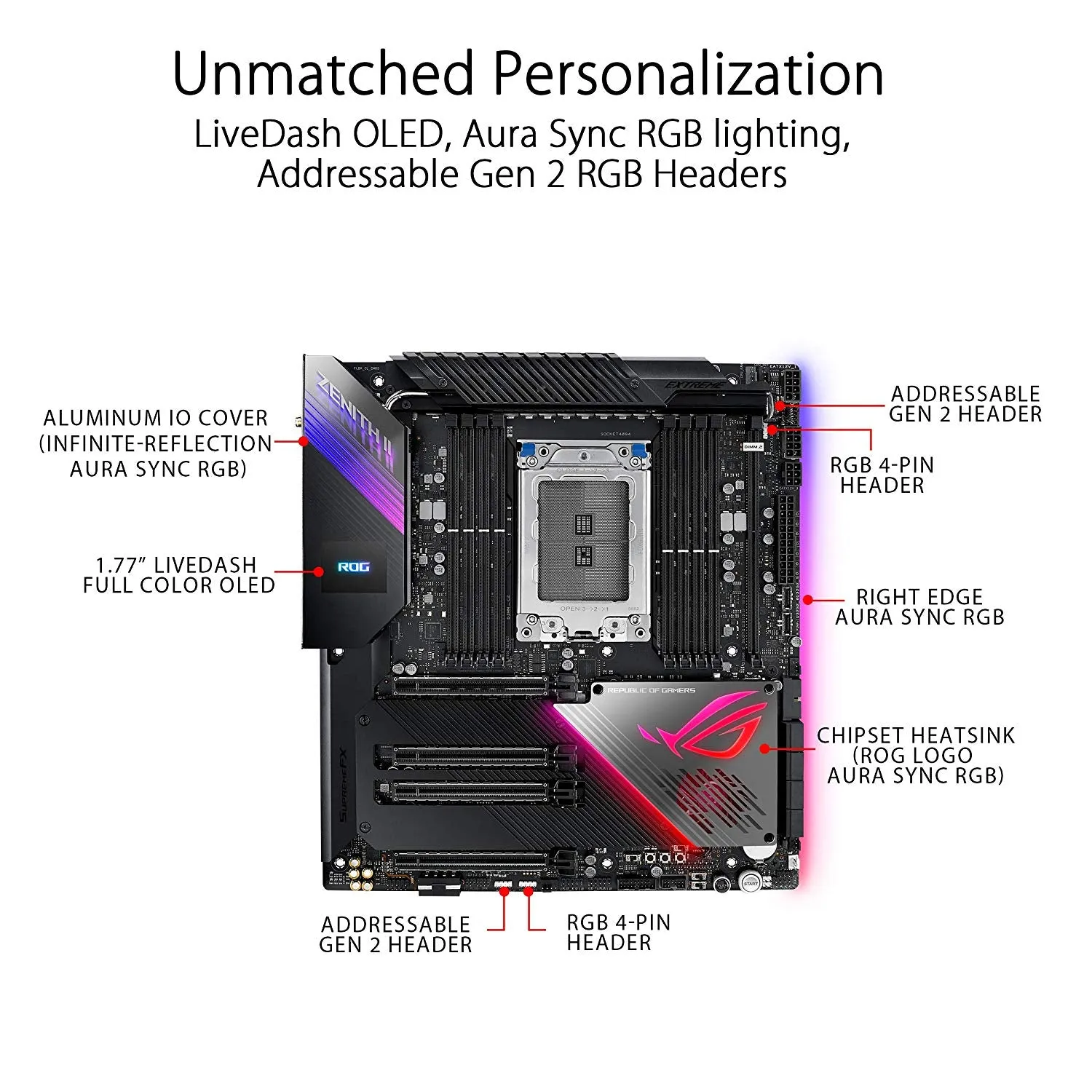

- Unmatched personalization: Color OLED display and ASUS-exclusive Aura Sync RGB lighting, including two additional RGB headers and two addressable headers
~section~
Teamed Power Architecture
VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
OPTIMEM III DDR4 4733MHz (O.C.)
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, OptiMem III allows memory kits to run at lower latencies and reduced voltages while operating at higher frequencies
Overclocking
Critically acclaimed UEFI and AI Suite tuning utility offer an accessible range of manual tweaking options for experts who want maximum control over their hardware.
Storage

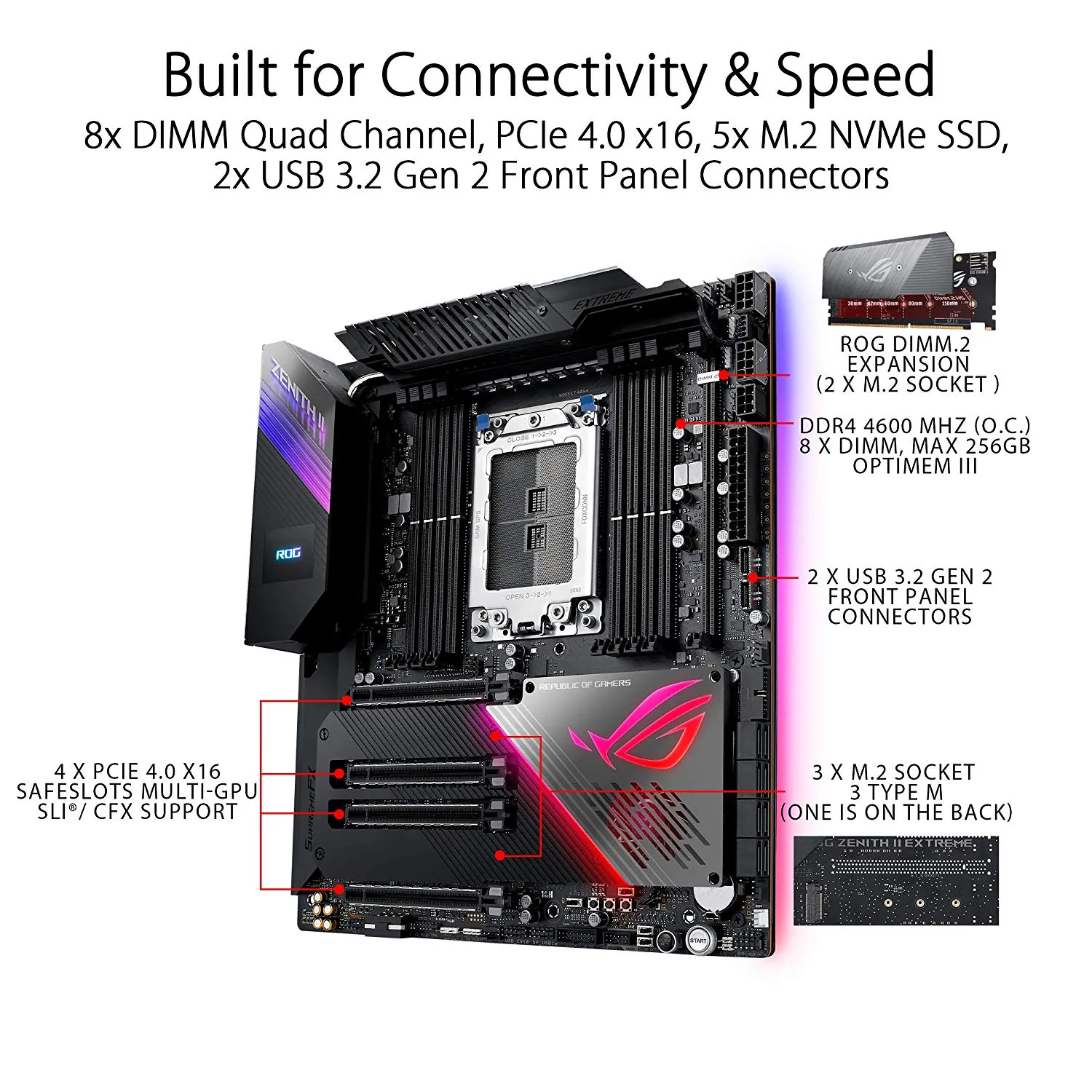

ROG Zenith II Extreme supports up to five M.2 drives for maxed-out storage. Two ride the ROG DIMM.2 module, next to the memory slots, and support drives up to 110m. There are another two slots under the aluminum heatsink cover, with a fifth one at the rear of the board. Every one of these slots is wired to support full PCIe 4.0 bandwidth.
USB
The TRX40 platform is aimed at the most discerning content creators, so Zenith II Extreme implements the latest USB standards. Ready-to-use ports are located on the rear I/O panel, and there are front-panel connectors on the motherboard to let you put USB right where you need it.
NETWORKING
The beefed-up bandwidth doesn't stop with the TRX40 platform. We also equipped Zenith II Extreme with multiple networking technologies, so you can push throughput to the limits.
Aura Sync
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
Gamefirst V Network Contro
GameFirst V is an ROG-exclusive tool that lets you use a ROG router to build a ROG-networking ecosystem. Select the best Wi-Fi channel for maximum stability and minimum interference, optimize network traffic and your connection for lag-free online gaming
Ramcache III
RAMCache lll turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, its uniquely intelligent technology effectively caches a storage device so that favorite games and apps launch at breakneck speeds.
~section~
| Model | ROG Zenith II Extreme |
| CPU Socket | AMD Socket sTRX4 |
| CPU Support | Build in AMD Socket sTRX4 for 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop Processors |
| Chipset | AMD TRX40 |
| Memory | AMD Ryzen™ Threadripper™ Processors 8 x DIMM, Max. 256GB, DDR4 4733(O.C)/4600(O.C)/4400(O.C)/4333(O.C.)/4266(O.C.)/4133(O.C.)/3800(O.C.)/3733(O.C.)/3400(O.C.)/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory Quad Channel Memory Architecture |
| On-Board Graphics support | Discrete Graphics card required |
| Multi-GPU Support | Supports NVIDIA® 3-Way SLI® Technology Supports AMD 3-Way CrossFireX™ Technology |
| Expansion Slot | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors 4 x PCIe 4.0 (x16, x16/x16, x16/x8/x16, x16/x8/x16/x8) |
| LAN | Intel® I211-AT, 1 x Gigabit LAN Controller(s) Aquantia AQC-107 10G Anti-surge LANGuard ROG GameFirst V Technology |
| Storage | 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x ROG DIMM.2 Module supports 2 M.2 Socket 3 , with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode) 2 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4 mode)*1 3rd Gen AMD Ryzen™ Threadripper™ Series Desktop processors : 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 (PCIe 4.0 x4/x2 mode)*2 Support Raid 0, 1, 10 AMD TRX40 chipset : 4 x SATA 6Gb/s port(s), ASMedia® SATA 6Gb/s controller : 4 x SATA 6Gb/s port(s), |
| Audio | - ROG SupremeFX 8-Channel High Definition Audio CODEC S1220 - Impedance sense for front and rear headphone outputs - Supports : Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output 108 dB SNR recording input - ESS® ESS9018Q2C Audio Feature : - SupremeFX Shielding™ Technology - Sonic Studio III Sonic Studio Virtual Mixer - DTS® Sound Unbound - LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path. - Sonic Radar III |
| USB Ports | 3rd Gen AMD Ryzen™ Threadripper™ Processors : 4 x USB 3.2 Gen 2 port(s) (4 at back panel, red) AMD TRX40 chipset : 2 x USB 3.2 Gen 2 front panel connector port(s) AMD TRX40 chipset : 3 x USB 3.2 Gen 2 port(s) (3 at back panel, red, 2 x Type-A 1 x Type-C) AMD TRX40 chipset : 3 x USB 2.0 port(s) ASMedia® USB 3.2 Gen 1 controller : 8 x USB 3.2 Gen 1 port(s) (4 at back panel, blue) ASMedia® USB 3.2 Gen2x2 controller : 1 x USB 3.2 Gen 2x2 (up to 20Gbps) port(s) (1 at back panel, , Type-C) |

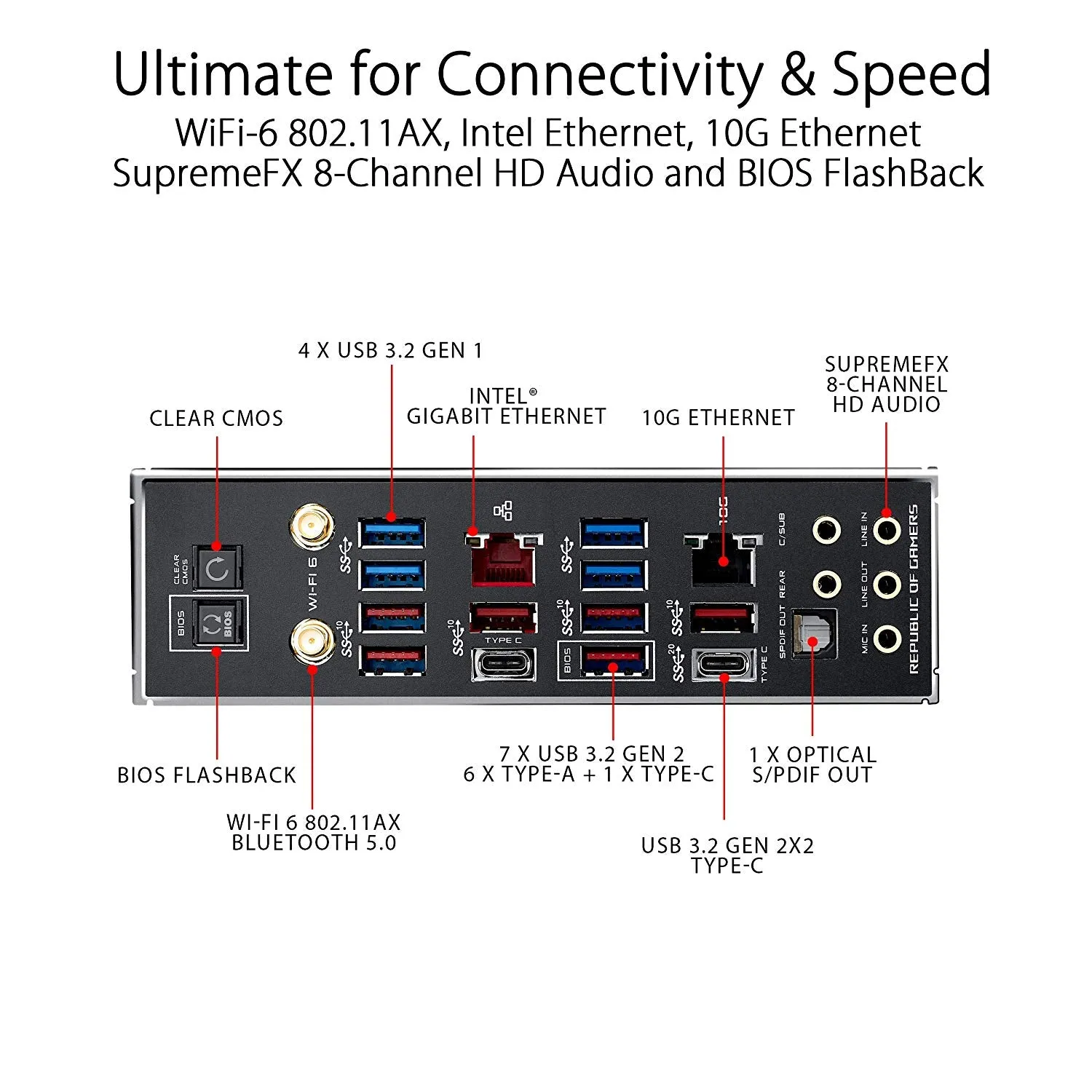

| I/O Ports | 1 x LAN (RJ45) port(s) 1 x USB 3.2 Gen 2x2 (up to 20Gbps) ports (Type-C) 4 x USB 3.2 Gen 1 blue 5 x USB 3.2 Gen 2 (red) (3 x Type-A 1 x Type-C) 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS FlashBack™ Button(s) 5 x LED-illuminated audio jacks 1 x Aquantia AQC-107 10G LAN port |
| Internal I/O ports | 2 x Aura RGB Strip Header 2 x Addressable Gen 2 header(s) 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4 mode) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices(support PCIe 4.0 x4/x2 mode) 1 x TPM header 8 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x H_AMP fan connector 2 x W_PUMP connector 1 x WB_SENSOR 1 x 6-pin EATX 12 V Power connector 1 x 24-pin EATX Power connector(s) 2 x 8-pin EATX 12V Power connectors 1 x 4-pin EZ_PLUG Power connector(s) 1 x Front panel audio connector(s) (AAFP) 7 x ProbeIt Measurement Points 1 x BIOS Switch button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x M.2 socket pre-installed with a Wi-Fi/Bluetooth module 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 2 x USB 3.2 Gen 2 front panel connector 1 x Speaker connector 1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110) 1 x RSVD Switch 1 x Start button 1 x FlexKey button 1 x FS Mode switch 1 x M.2_3 cold storage Switch 1 x Chipset Fan Header 1 x VRM_HS_FAN Header |
| Dimensions | 12.2 inch x 10.9 inch ( 31 cm x 27.7 cm ) Extended ATX Form Factor |
| Warranty | 3 Years of Brand Warranty |
